1.什么是Spring Batch？

Spring Batch 是一个轻量级的开源框架，它提供了一种简单的方式来处理大量的数据。它基于Spring框架，提供了一套批处理框架，可以处理各种类型的批处理任务，如ETL、数据导入/导出、报表生成等。Spring Batch提供了一些重要的概念，如Job、Step、ItemReader、ItemProcessor、ItemWriter等，这些概念可以帮助我们构建可重用的批处理应用程序。通过Spring Batch，我们可以轻松地实现批处理的并发、容错、重试等功能，同时也可以方便地与其他Spring组件集成，如Spring Boot、Spring Data等。总之，Spring Batch是一个非常强大、灵活、易于使用的批处理框架，可以帮助我们快速构建高效、可靠的批处理应用程序。

分层架构

可以看到它分为三层，分别是：

• Application应用层：包含了所有任务batch jobs和开发人员自定义的代码，主要是根据项目需要开发的业务流程等。
• Batch Core核心层：包含启动和管理任务的运行环境类，如JobLauncher等。
• Batch Infrastructure基础层：上面两层是建立在基础层之上的，包含基础的读入reader和写出writer、重试框架等。

主要概念

2.2.1 JobRepository

专门负责与数据库打交道，对整个批处理的新增、更新、执行进行记录。所以Spring Batch是需要依赖数据库来管理的。

2.2.2 任务启动器JobLauncher

负责启动任务Job。

2.2.3 任务Job

Job是封装整个批处理过程的单位，跑一个批处理任务，就是跑一个Job所定义的内容。

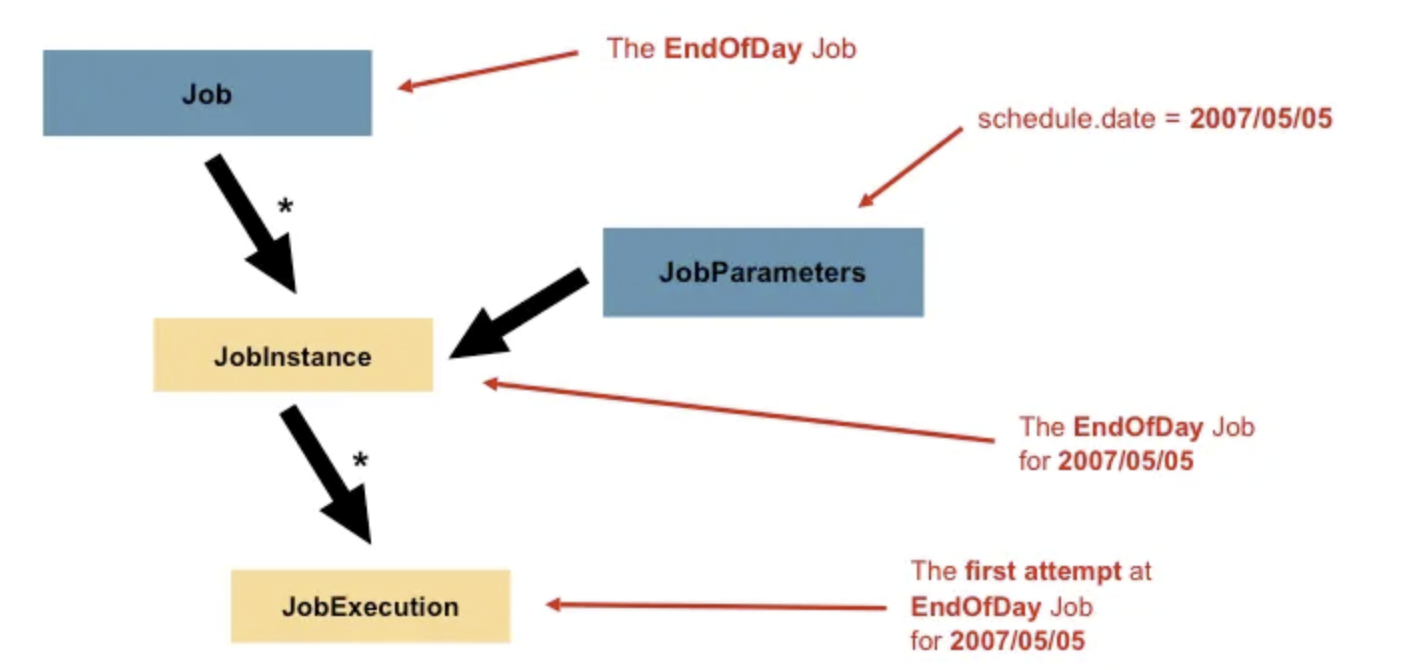

  上图介绍了Job的一些相关概念：

• Job：封装处理实体，定义过程逻辑。
• JobInstance：Job的运行实例，不同的实例，参数不同，所以定义好一个Job后可以通过不同参数运行多次。
• JobParameters：与JobInstance相关联的参数。
• JobExecution：代表Job的一次实际执行，可能成功、可能失败。

所以，开发人员要做的事情，就是定义Job。

2.2.4 步骤Step

Step是对Job某个过程的封装，一个Job可以包含一个或多个Step，一步步的Step按特定逻辑执行，才代表Job执行完成。

  通过定义Step来组装Job可以更灵活地实现复杂的业务逻辑。

2.2.5 输入——处理——输出

所以，定义一个Job关键是定义好一个或多个Step，然后把它们组装好即可。而定义Step有多种方法，但有一种常用的模型就是输入——处理——输出，即Item Reader、Item Processor和Item Writer。比如通过Item Reader从文件输入数据，然后通过Item Processor进行业务处理和数据转换，最后通过Item Writer写到数据库中去。 Spring Batch为我们提供了许多开箱即用的Reader和Writer，非常方便。

2.环境搭建

参照代码仓库mysql模块里面docker目录搭建

3.代码工程

实验目标

如何使用 Spring Boot 创建各种不同类型 Spring Batch Job

pom.xml

               springboot-demo         com.et         1.0-SNAPSHOT          4.0.0      SpringBatch               8         8                                org.springframework.boot             spring-boot-starter-web                                org.springframework.boot             spring-boot-autoconfigure                               org.springframework.boot             spring-boot-starter-test             test                               org.springframework.boot             spring-boot-starter-batch                                mysql             mysql-connector-java                               org.springframework.boot             spring-boot-starter-jdbc                                                          org.springframework.boot                 spring-boot-maven-plugin

job

第一个简单的任务

package com.et.batch.job;  import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.repeat.RepeatStatus; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.stereotype.Component;  @Component public class FirstJobDemo {      @Autowired     private JobBuilderFactory jobBuilderFactory;     @Autowired     private StepBuilderFactory stepBuilderFactory;      @Bean     public Job firstJob() {         return jobBuilderFactory.get("firstJob")                 .start(step())                 .build();     }      private Step step() {         return stepBuilderFactory.get("step")                 .tasklet((contribution, chunkContext) -> {                     System.out.println("execute  step....");                     return RepeatStatus.FINISHED;                 }).build();     } }

多步骤的job

package com.et.batch.job;  import org.springframework.batch.core.ExitStatus; import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.repeat.RepeatStatus; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.stereotype.Component;  @Component public class MultiStepJobDemo {      @Autowired     private JobBuilderFactory jobBuilderFactory;     @Autowired     private StepBuilderFactory stepBuilderFactory;      @Bean     public Job multiStepJob() {         /*return jobBuilderFactory.get("multiStepJob")                 .start(step1())                 .next(step2())                 .next(step3())                 .build();*/         // control the next step by last Status         return jobBuilderFactory.get("multiStepJob2")           .start(step1())                 .on(ExitStatus.COMPLETED.getExitCode()).to(step2())                 .from(step2())                 .on(ExitStatus.COMPLETED.getExitCode()).to(step3())                 .from(step3()).end()                 .build();     }      private Step step1() {         return stepBuilderFactory.get("step1")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step1。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step2() {         return stepBuilderFactory.get("step2")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step2。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step3() {         return stepBuilderFactory.get("step3")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step3。。。");                     return RepeatStatus.FINISHED;                 }).build();     } }

多flow控制的job， 创建一个flow对象，包含若干个step

package com.et.batch.job;  import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.core.job.builder.FlowBuilder; import org.springframework.batch.core.job.flow.Flow; import org.springframework.batch.repeat.RepeatStatus; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.stereotype.Component;  @Component public class FlowJobDemo {      @Autowired     private JobBuilderFactory jobBuilderFactory;     @Autowired     private StepBuilderFactory stepBuilderFactory;      @Bean     public Job flowJob() {         return jobBuilderFactory.get("flowJob")                 .start(flow())                 .next(step3())                 .end()                 .build();     }      private Step step1() {         return stepBuilderFactory.get("step1")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step1。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step2() {         return stepBuilderFactory.get("step2")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step2。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step3() {         return stepBuilderFactory.get("step3")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step3。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Flow flow() {         return new FlowBuilder("flow")                 .start(step1())                 .next(step2())                 .build();     } }

并发执行的jobs

package com.et.batch.job;  import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.core.job.builder.FlowBuilder; import org.springframework.batch.core.job.flow.Flow; import org.springframework.batch.repeat.RepeatStatus; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.core.task.SimpleAsyncTaskExecutor; import org.springframework.stereotype.Component;  @Component public class SplitJobDemo {      @Autowired     private JobBuilderFactory jobBuilderFactory;     @Autowired     private StepBuilderFactory stepBuilderFactory;      @Bean     public Job splitJob() {         return jobBuilderFactory.get("splitJob")                 .start(flow1())                 .split(new SimpleAsyncTaskExecutor()).add(flow2())                 .end()                 .build();      }      private Step step1() {         return stepBuilderFactory.get("step1")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step1。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step2() {         return stepBuilderFactory.get("step2")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step2。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step3() {         return stepBuilderFactory.get("step3")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step3。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Flow flow1() {         return new FlowBuilder("flow1")                 .start(step1())                 .next(step2())                 .build();     }      private Flow flow2() {         return new FlowBuilder("flow2")                 .start(step3())                 .build();     } }

根据上次运行结果判断是否执行下一步

package com.et.batch.job;  import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.repeat.RepeatStatus; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.stereotype.Component;  @Component public class DeciderJobDemo {      @Autowired     private JobBuilderFactory jobBuilderFactory;     @Autowired     private StepBuilderFactory stepBuilderFactory;     @Autowired     private MyDecider myDecider;      @Bean     public Job deciderJob() {         return jobBuilderFactory.get("deciderJob")                 .start(step1())                 .next(myDecider)                 .from(myDecider).on("weekend").to(step2())                 .from(myDecider).on("workingDay").to(step3())                 .from(step3()).on("*").to(step4())                 .end()                 .build();     }      private Step step1() {         return stepBuilderFactory.get("step1")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step1。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step2() {         return stepBuilderFactory.get("step2")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step2。。。");                     return RepeatStatus.FINISHED;                 }).build();     }      private Step step3() {         return stepBuilderFactory.get("step3")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step3。。。");                     return RepeatStatus.FINISHED;                 }).build();     }       private Step step4() {         return stepBuilderFactory.get("step4")                 .tasklet((stepContribution, chunkContext) -> {                     System.out.println("execute step4。。。");                     return RepeatStatus.FINISHED;                 }).build();     } }

父子嵌套job

package com.et.batch.job;  import org.springframework.batch.core.Job; import org.springframework.batch.core.Step; import org.springframework.batch.core.configuration.annotation.JobBuilderFactory; import org.springframework.batch.core.configuration.annotation.StepBuilderFactory; import org.springframework.batch.core.launch.JobLauncher; import org.springframework.batch.core.repository.JobRepository; import org.springframework.batch.core.step.builder.JobStepBuilder; import org.springframework.batch.core.step.builder.StepBuilder; import org.springframework.batch.repeat.RepeatStatus; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.context.annotation.Bean; import org.springframework.stereotype.Component; import org.springframework.transaction.PlatformTransactionManager;  @Component public class NestedJobDemo {      @Autowired     private JobBuilderFactory jobBuilderFactory;     @Autowired     private StepBuilderFactory stepBuilderFactory;     @Autowired     private JobLauncher jobLauncher;     @Autowired     private JobRepository jobRepository;     @Autowired     private PlatformTransactionManager platformTransactionManager;      @Bean     public Job parentJob() {         return jobBuilderFactory.get("parentJob")                 .start(childJobOneStep())                 .next(childJobTwoStep())                 .build();     }       private Step childJobOneStep() {         return new JobStepBuilder(new StepBuilder("childJobOneStep"))                 .job(childJobOne())                 .launcher(jobLauncher)                 .repository(jobRepository)                 .transactionManager(platformTransactionManager)                 .build();     }      private Step childJobTwoStep() {         return new JobStepBuilder(new StepBuilder("childJobTwoStep"))                 .job(childJobTwo())                 .launcher(jobLauncher)                 .repository(jobRepository)                 .transactionManager(platformTransactionManager)                 .build();     }      private Job childJobOne() {         return jobBuilderFactory.get("childJobOne")                 .start(                     stepBuilderFactory.get("childJobOneStep")                             .tasklet((stepContribution, chunkContext) -> {                                 System.out.println("subtask1。。。");                                 return RepeatStatus.FINISHED;                             }).build()                 ).build();     }      private Job childJobTwo() {         return jobBuilderFactory.get("childJobTwo")                 .start(                     stepBuilderFactory.get("childJobTwoStep")                             .tasklet((stepContribution, chunkContext) -> {                                 System.out.println("subtask2。。。");                                 return RepeatStatus.FINISHED;                             }).build()                 ).build();     } }

application.yaml

自动会初始化脚本，只需要建立以恶搞空库就行

spring:   datasource:     driver-class-name: com.mysql.cj.jdbc.Driver     url: jdbc:mysql://localhost:3306/springbatch     username: root     password: 123456    batch:     jdbc:       schema: classpath:org/springframework/batch/core/schema-mysql.sql     initialize-schema: always #Since Spring Boot 2.5.0 use spring.batch.jdbc.initialize-schema=never      job:       enabled: true

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

• GitHub - Harries/springboot-demo: a simple springboot demo with some components for example: redis,solr,rockmq and so on.

4.测试

• 启动Spring Boot应用程序，系统会自动运行job，跑过一次，下次启动不会继续执行
• 如果要执行定时任务，可以利用spring提供的scheduledTaskRegistrar注册一个定时任务，扫描最新的定时任务，将这些定时任务注册到scheduleFuture中从而实现动态定时任务。
